M-138

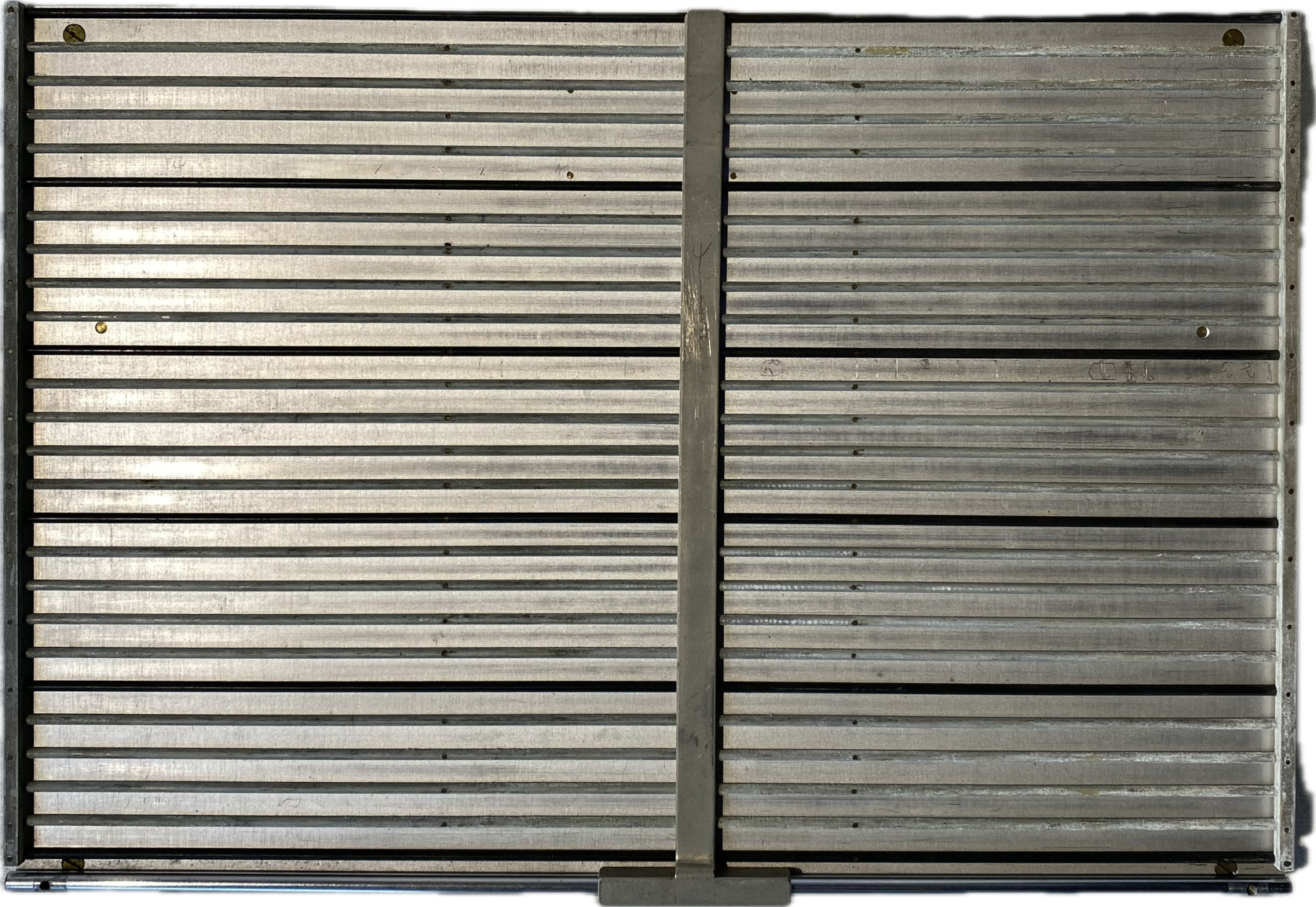

The base is a flat aluminium board which measures 16″ x 11″ (40.64cm x 27.94cm).
Cylindrical rods, 1/8″ (3.2mm) in diameter, separate the board in 25 horizontal channels.
The rods are spaced 5/8″(1.6cm) apart and are fixed with 4 rivets each. Every fifth is black, starting with the topmost rod.
A ruler, attached to a rod fixed at the bottom edge, slides from side to side.
Two bars are fixed on the left and right edge, atop the rods so the paper strips can slide under.

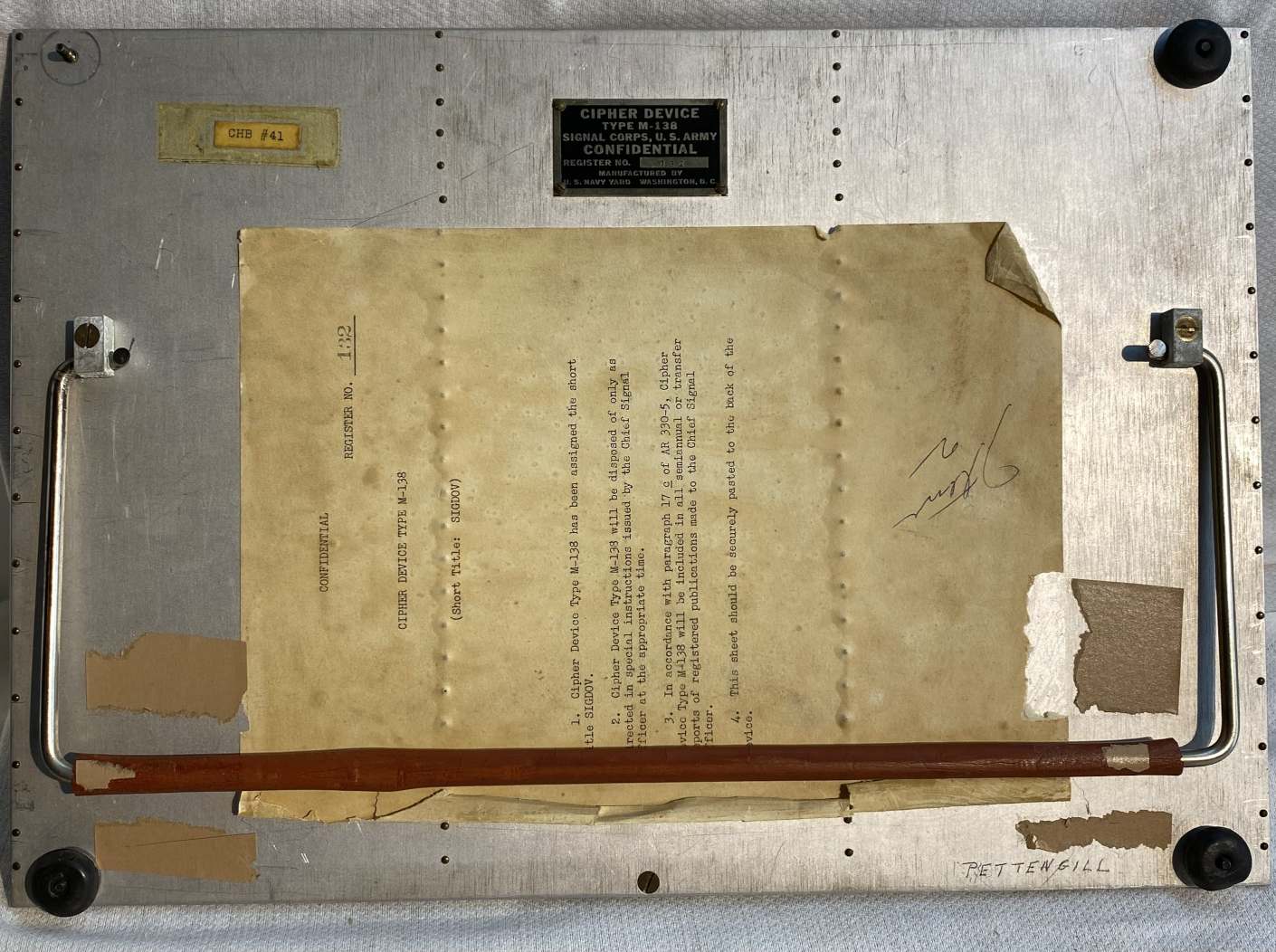

The back side features rubber feet, and a support so the device can stand at a 45° inclination.

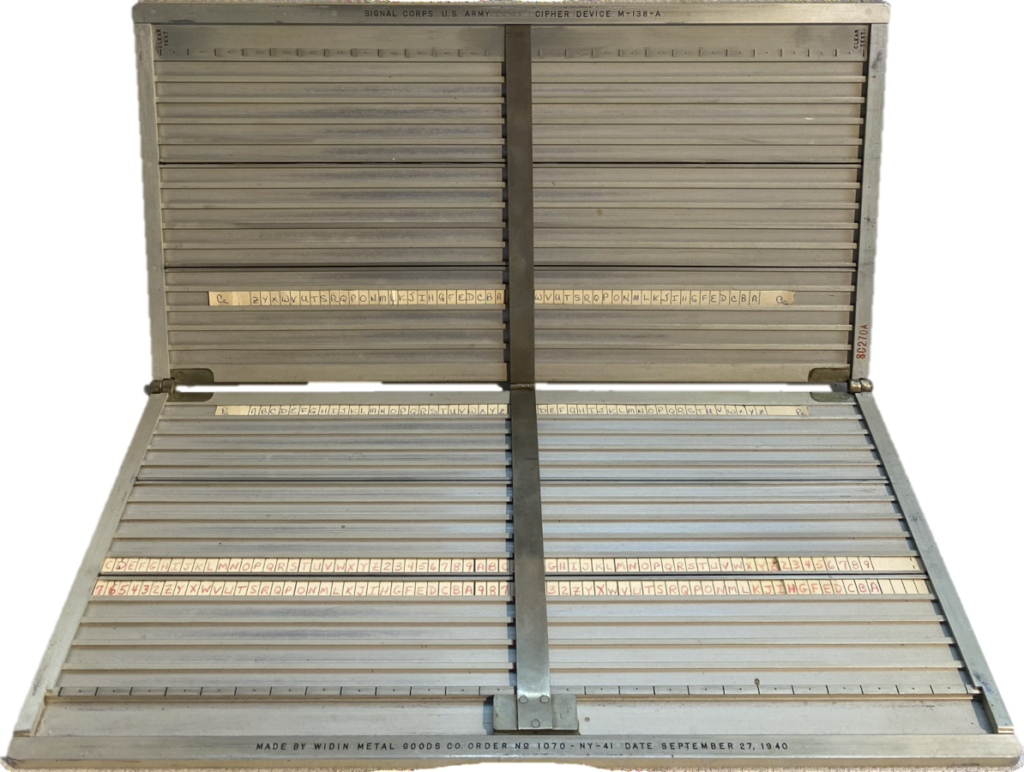

The device has an hinged aluminium base, 14 5/8″ x 15 11/16″ (37.14cm x 39.84cm) unfolded, weighing about 2kg.
The base has 30 milled channels.
“CLEAR TEXT” is written above the first and last (53^rd) columns, and “DO NOT COPY” above the center (27^th) column
A vertical line appears above and below each odd column, and a dot above and below even columns.
An hinged ruler can slide along a groove at the bottom of the base. It is 1/2″ wide and removable.
