Kryptos

Technical Informations

Appearance and dimensions

Kryptos is comprised of several elements.

  • The main part is comprised of S-shaped copper panels, approximatively 12′ (3.66m) high and 20′ (6m) long, supported by petrified wood.
    • Panel 1 is engraved with the ciphers (the top half has K1 and K2, the bottom half K3 and K4), while panel 2 bears a Vigenere table with the key “KRYPTOS”.
    • In total there are 1732 letters, plus 4 interrogation points, on 56 lines.
    • The color is mostly verdigris due to the copper’s oxidation.
  • There is a pool between 2 slabs of rock, one whiteish and one red, in front of the panels.

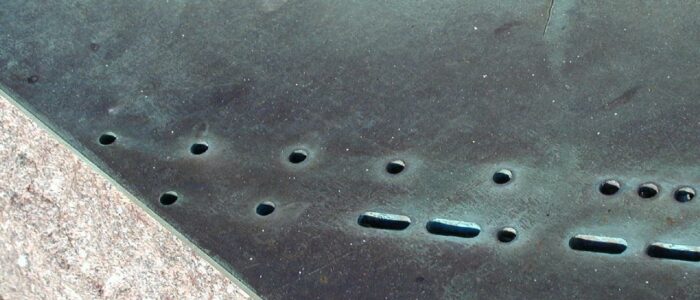

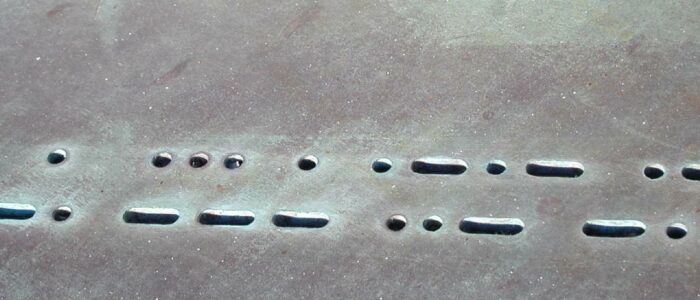

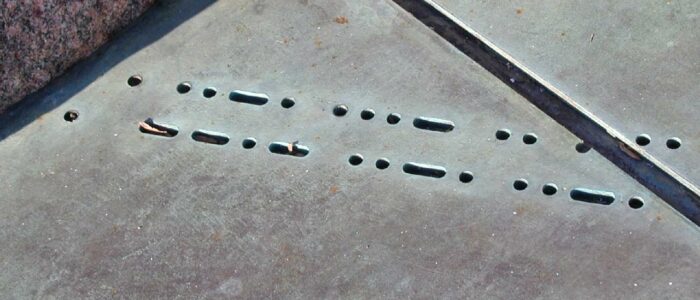

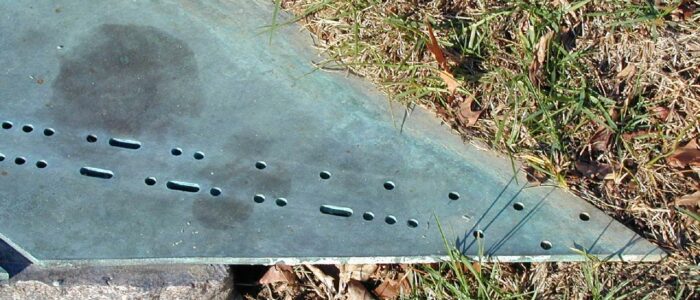

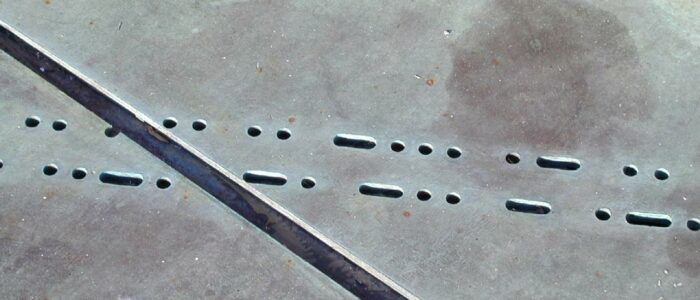

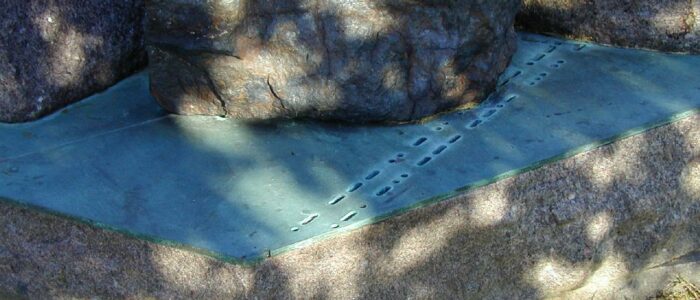

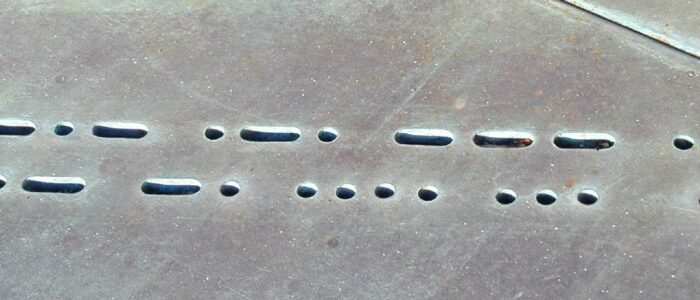

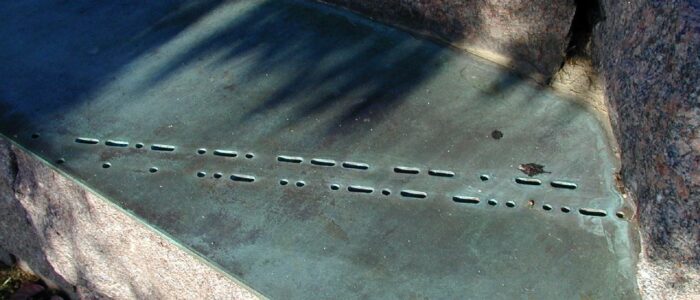

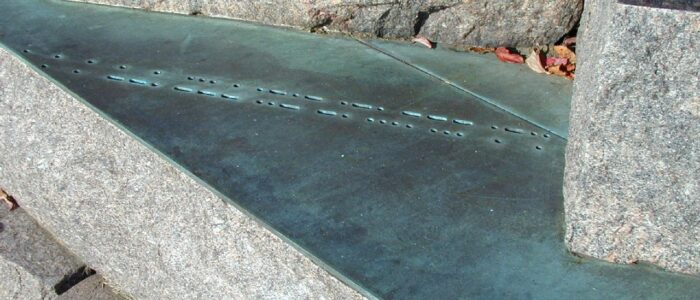

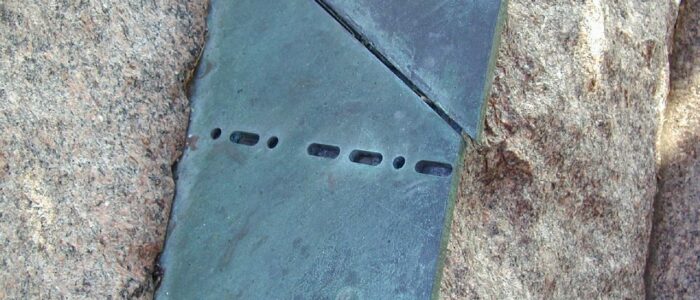

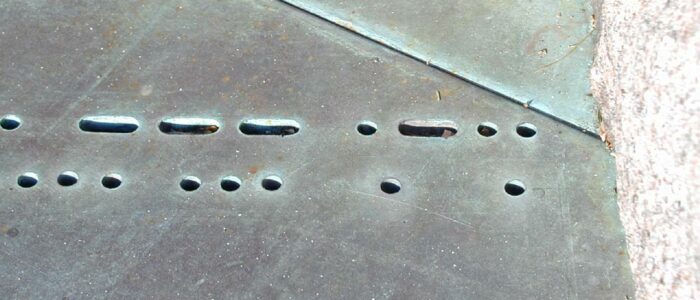

  • At the entrance to the building, there are slabs of granit with copper plates engraved with morse code.
Kryptos – The panels and petrified wood

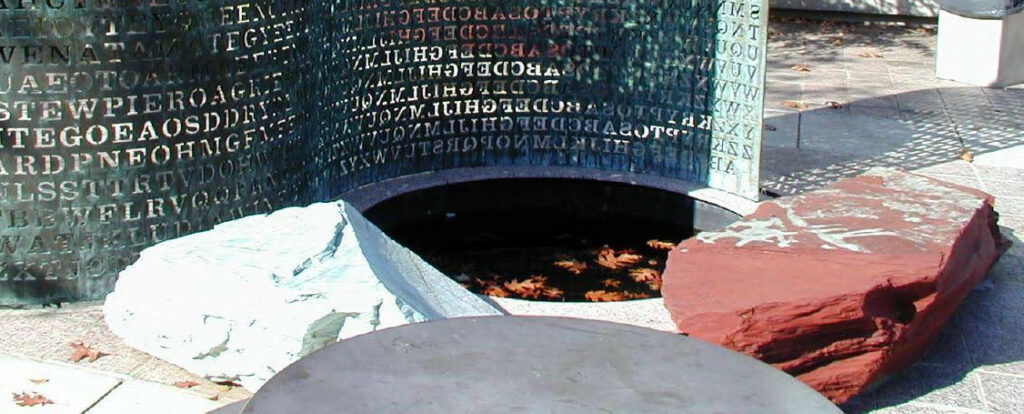

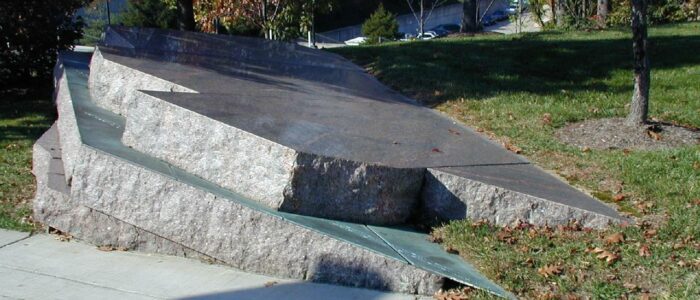

Kryptos – The pool and the granite blocks

Ciphers

K1

K1 is 64 letters long.

EMUFPHZLRFAXYUSDJKZLDKRNSHGNFIVJYQTQUXQBQVYUVLLTREVJYQTMKYRDMFD

BETWEEN SUBTLE SHADING AND THE ABSENCE OF LIGHT LIES THE NUANCE OF IQLUSION


K2

K2 is 469 letters long.

VFPJUDEEHZWETZYVGWHKKQETGFQJNCEGGWHKK?DQMCPFQZDQMMIAGPFXHQRLGTIMVMZJANQLVKQEDAGDVFRPJUNGEUNAQZGZLECGYUXUEENJTBJLBQCRTBJDFHRRYIZETKZEMVDUFKSJHKFWHKUWQLSZFTIHHDDDUVH?DWKBFUFPWNTDFIYCUQZEREEVLDKFEZMOQQJLTTUGSYQPFEUNLAVIDXFLGGTEZ?FKZBSFDQVGOGIPUFXHHDRKFFHQNTGPUAECNUVPDJMQCLQUMUNEDFQELZZVRRGKFFVOEEXBDMVPNFQXEZLGREDNQFMPNZGLFLPMRJQYALMGNUVPDXVKPDQUMEBEDMHDAFMJGZNUPLGEWJLLAETG

IT WAS TOTALLY INVISIBLE HOW’S THAT POSSIBLE? THEY USED THE EARTH’S MAGNETIC FIELD X THE INFORMATION WAS GATHERED AND TRANSMITTED UNDERGRUUND TO AN UNKNOWN LOCATION X DOES LANGLEY KNOW ABOUT THIS? THEY SHOULD IT’S BURIED OUT THERE SOMEWHERE X WHO KNOWS THE EXACT LOCATION? ONLY WW THIS WAS HIS LAST MESSAGE X THIRTY EIGHT DEGREES FIFTY SEVEN MINUTES SIX POINT FIVE SECONDS NORTH SEVENTY SEVEN DEGREES EIGHT MINUTES FORTY FOUR SECONDS WEST ID BY ROWS

Corrected:

PLGESWJLLAETG

WESTxLAYERTWO

K3

K3 is 323 letters long.

ENDYAHROHNLSRHEOCPTEOIBIDYSHNAIACHTNREYULDSLLSLLNOHSNOSMRWXMNETPRNGATIHNRARPESLNNELEBLPIIACAEWMTWNDITEENRAHCTENEUDRETNHAEOETFOLSEDTIWENHAEIOYTEYQHEENCTAYCREIFTBRSPAMHHEWENATAMATEGYEERLBTEEFOASFIOTUETUAEOTOARMAEERTNRTIBSEDDNIAAHTTMSTEWPIEROAGRIEWFEBAECTDDHILCEIHSITEGOEAOSDDRYDLORITRKLMLEHAGTDHARDPNEOHMGFMFEUHEECDMRIPFEIMEHNLSSTTRTVDOHW?

SLOWLY DESPARATLY SLOWLY THE REMAINS OF PASSAGE DEBRIS THAT ENCUMBERED THE LOWER PART OF THE DOORWAY WAS REMOVED WITH TREMBLING HANDS I MADE A TINY BREACH IN THE UPPER LEFT HAND CORNER AND THEN WIDENING THE HOLE A LITTLE I INSERTED THE CANDLE AND PEERED IN THE HOT AIR ESCAPING FROM THE CHAMBER CAUSED THE FLAME TO FLICKER BUT PRESENTLY DETAILS OF THE ROOM WITHIN EMERGED FROM THE MIST X CAN YOU SEE ANYTHING Q ?

K4

K4 is 97 letters long.

OBKRUOXOGHULBSOLIFBBWFLRVQQPRNGKSSOTWTQSJQSSEKZZWATJKLUDIAWINFBNYPVTTMZFPKWGDKZXTJCDIGKUHUAUEKCAR

OBKR
____

UOXOGHULBSOLIFBBWFLRVQQPRNGKSSO
__________________eastnortheast

TWTQSJQSSEKZZWATJKLUDIAWINFBNYP
____________________________ber

VTTMZFPKWGDKZXTJCDIGKUHUAUEKCAR
linclock_______________________
